ZJQ submersible slurry pumps

Category:

Submersible Slurry Pumps

Keywords:

E-mail：

sales@panstopump.com

Feedback

产品描述

Product Introduction

ZJQ、NSQ submersible slurry pump. Sand suction pump is composed of motor and pump, which are separated by oil.Separation from the chamber and mechanical seal assembly is an electromechanical one-body product. The motor and pump share the same shaft (rotor).Three pumps are short in length and compact in structure Equipped with various protection devices to make the pump run safely and reliably.

It is safe and reliable to operate with Y series national standard motor F grade insulation.

Adopting double-channel series seal and selecting new alloy material, it has the characteristics of reliable sealing and long wear-resistant life.

The over-flow parts are made of high chromium slurry pump with good wear resistance and excellent over-flow performance, which is of the same kind in China 2-10 times of the service life of type I pump

Technical Parameters

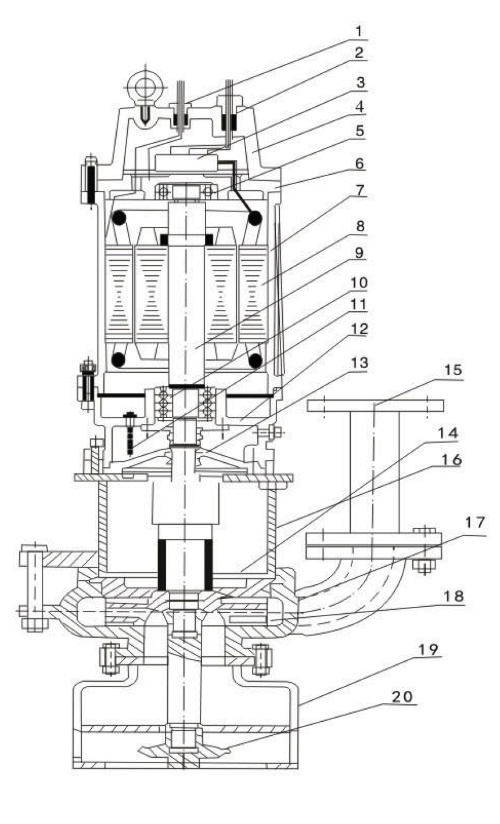

1	Signal line	11	Oil water probe
2	Motor wiring	12	Oil chamber
3	Junction box	13	Mechanical seal
4	Motor cover	14	Guard board
5	Bearing	15	Outlet pipe
6	Upper axle seat	16	Support
7	Motor housing	17	Pump body
8	Stator	18	Impeller
9	Shaft (rotor)	19	Base filter screen
10	Bearing	20	Cutterhead

Product Model		Rotational speed (r/min)	Flow (m³/h)	Head (m)	Power (KW)	Calibre (mm)
40ZJQ、NSQ	8-12-2.2	1450	8	12	2.2	40
	10-21-5.5		10	21	5.5	40
	15-12-3		15	12	3	40
	18-19-5.5		18	19	5.5	40
	23-10-3		23	10	3	40
	25-17-5.5		25	17	5.5	40
50ZJQ、NSQ	20-10-3	1450	20	10	3	50
	20-20-4		20	20	4	50
	25-15-4		25	15	4	50
	25-30-7.5		25	30	7.5	50
	30-15-5.5		30	15	5.5	50
	35-6-4		35	6	4	50
	45-14-5.5		45	14	5.5	50
65ZJQ、NSQ	25-15-4	1450	25	15	4	65
	47-34-11		47	34	11	65
	56-27-11		56	27	11	65
	71-25-11		71	25	11	65
80ZJQ、NSQ	10-15-5.5	1450	10	15	5.5	80
	30-30-7.5		30	30	7.5	80
	45-15-5.5		45	15	5.5	80
	70-20-7.5		70	20	7.5	80
	70-35-15		70	35	15	80
	80-15-7.5		80	15	7.5	80
	80-20-11		80	20	11	80
	80-45-22		80	45	22	80
	100-20-11		100	20	11	80
	100-30-15		100	30	15	80
	130-19-22		130	19	22	80
100ZJQ、NSQ	80-25-15	1450	80	25	15	100
	100-12-7.5		100	12	7.5	100
	100-20-15		100	20	15	100
	100-30-18.5		100	30	18.5	100
	120-18-15		120	18	15	100
	120-35-22		120	35	22	100
	150-25-22		150	25	22	100
	150-38-30		150	38	30	100
	160-80-90		160	80	90	100
	180-22-22		180	22	22	100
	200-35-37		200	35	37	100
150ZJQ、NSQ	120-16-15	1450	120	16	15	150
	150-22-18.5		150	22	18.5	150
	150-35-22		150	35	22	150
	180-25-22		180	25	22	150
	200-22-22		200	22	22	150
	200-35-37		200	35	37	150
	200-80-110		200	80	110	150
	250-16-22		250	16	22	150
	250-22-30		250	22	30	150
	250-40-45		250	40	45	150
	260-35-45		260	35	45	150
	260-60-110		260	60	110	150
	280-33-45		280	33	45	150
	300-22-30		300	22	30	150
	300-30-37		300	30	37	150
	300-30-45		300	30	45	150
	350-25-37		350	25	37	150
	400-30-55		400	30	55	150
	450-25-75		450	25	75	150
200ZJQ、NSQ	300-25-37	1450	300	25	37	200
	450-25-55		450	25	55	200
	500-35-90		500	35	90	200

Product Characteristics

1、Adopting advanced technology, the sludge discharge ability is strong, and it can effectively pass through solid particles with a diameter of φ 30 ~ φ 60 mm without blockage.

2、The tearing mechanism can tear and cut fibrous substances and then discharge them smoothly without adding a filter screen on the pump.

3、Reasonable design, small motor power and remarkable energy saving effect.

4、The mechanical seal made of the latest materials can make the pump run safely and continuously.

5、Compact structure, convenient installation, simple engineering cost, no need to build pump house.

6、Can be used in full lift range to ensure motor overload.
