PG, PGH series gravel pump
PG, PGH series gravel pump
PG, PGH series gravel pump are horizontal, single pump shell structure of centrifugal pump, GH for high lift gravel pump.PG. PGH series gravel pump adopts a single pump shell structure connected with a cassette, with a wide overflow channel.
Category:
Keywords:
PGH series gravel pump
E-mail：
- 产品描述
-
Product Description
PG, PGH series gravel pump are horizontal,single pump shell structure of centrifugalpump, GH for high lift gravel pump.PG. PGH series gravel pump adopts a singlepump shell structure connected with acassette, with a wide overflow channel.The overflow parts are made of hard nickel,high chromium and other wear-resistantmaterials. The discharge direction of thepump can be at any position of 360 °, whichhas the advantages of convenient installationand use, good cavitation performance,abrasion resistance and so on.This series of pumps are mainly used for thecontinuous transportation of strong abrasivematerials whose particles are too large to betransported by general slurry pumps, suchas dredger excavationMud, large particlesand mining, river dredging, transportation ofmining and metal smelting slag, etc.
Technical Parameters

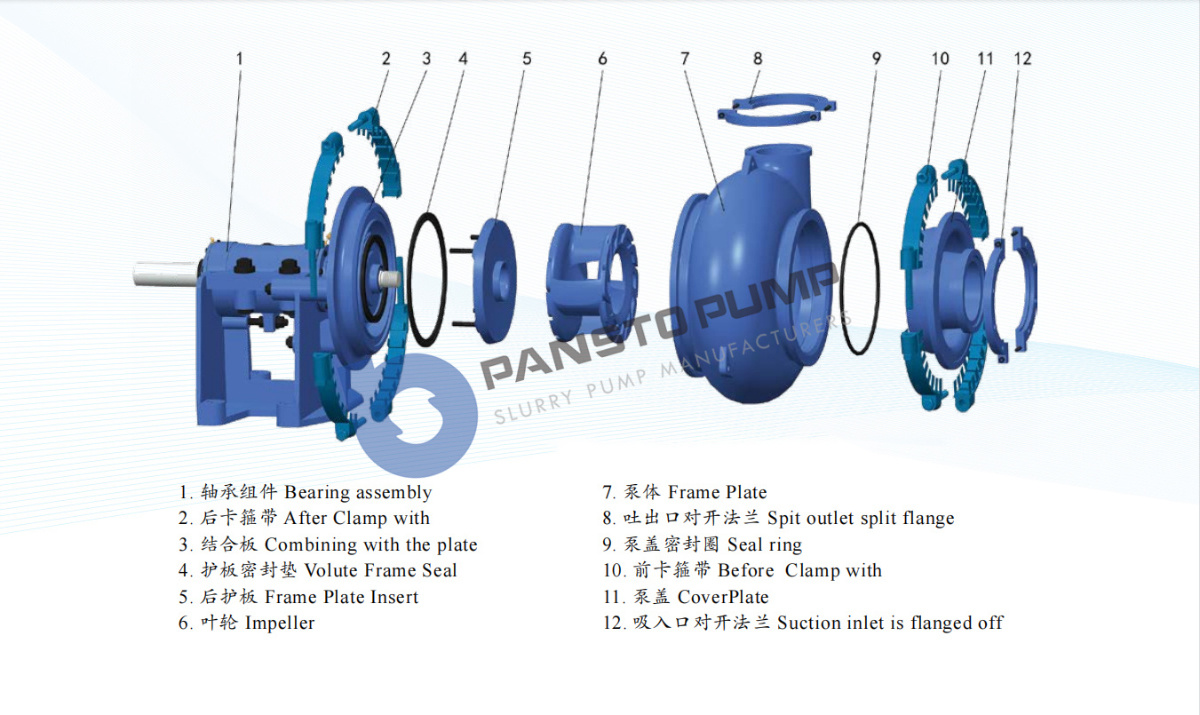

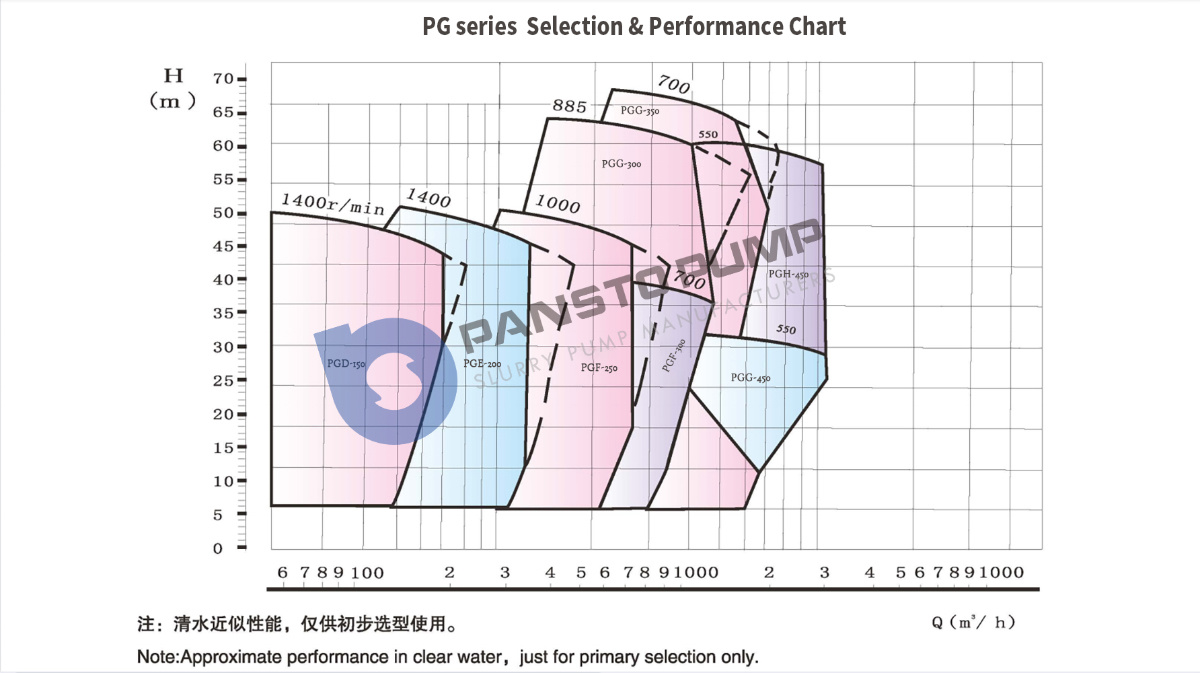

Model Allowable maximum power P（KW） FlowQ(m³/h) Head H(m) Rotational speedn(r/min) Efficiency η% Cavitation allowance NPSH(m) Impeller diameter D(mm) PGD-150 4-60 36-250 5-52 600-1400 58 2-5.5 378 PGD-200 15-120 126-576 6-45 600-1400 60 3-4.5 391 PGS-250 30-560 216-936 8-52 500-1000 65 3-7.5 533 PGF-250 15-560 216-936 8-52 400-800 65 3-7.5 533 PGF-300 600 360-1440 10-60 350-700 65 1.5-4.5 667 PGG-300 600 360-1440 8-60 400-800 65 1.5-4.5 667 PGG-350 600 576-2808 14-45 300-700 68 2-8 864 PGG-400 1200 720-3600 18-45 300-500 70 3-9 1016 PGG-450 1200 720-4320 12-48 250-500 72 3-6 1067 Product Diagram
