PH(J) series slurry pump
PH(J) series slurry pump
This series of slurry pump is a cantilever centrifugal double shell slurry pump， double pump shell pump body pump cover with a replaceable wear metal liner or natural rubber lining,1. It is suitable for transporting abrasive or corrosive slag slurry. It is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering.
Category:
Keywords:
PH(J) series slurry pump
E-mail：
- 产品描述
-
Product Description
This series of slurry pump is a cantilever centrifugal double shell slurry pump， double pump shell pump body pump cover with a replaceable wear metal liner or natural rubber lining,1. It is suitable for transporting abrasive or corrosive slag slurry. It is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering.
PH(J) and PHH pumps can also be called heavy slurry pumps. Because this type of pump has thick wear parts and heavy bracket, it is suitable for conveying strong abrasion, high concentration slag slurry or low concentration high lift slag slurry. It can be used in series at multiple levels within the maximum allowable working pressure range of the pump. HH pump is suitable for conveying low concentration high head slag slurry or high concentration low abrasive high head pump.
Technical Parameters

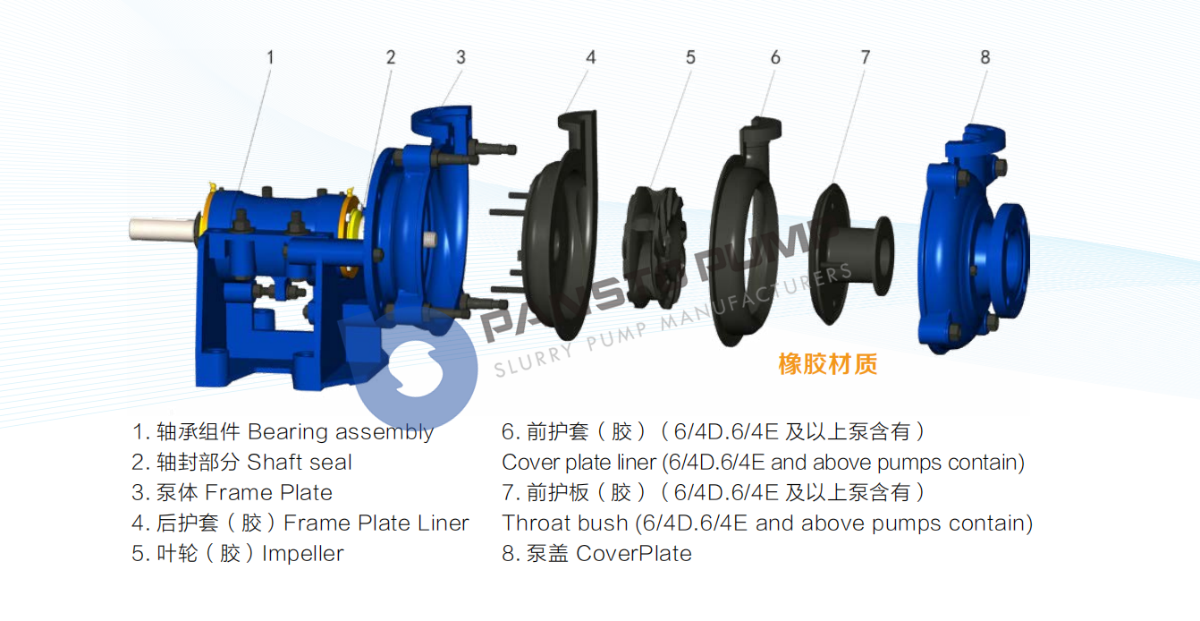

Model Distribution power P（KW） Flow Q(m³/h) Head H(m) Rotational speed n(r/min) Efficiency η% Cavitation allowance NPSH(m) Impeller diameter D(mm) Weight(kw) PHB-40(J) 2.2-15 10.8-25 7-52 1400-3400 35 2-4 159 77 PHB-50(J) 2.2-15 25.4-54 5.5-41 1000-2600 50 2.5-51 184 104 PHC-75(J) 3-30 36-75.6 13-39 1300-2100 50 2-4 229 154 PHC-100(J) 3-30 50-130 5-35 800-1800 59 3-5 245 236 PHD-100(J) 7.5-60 50-150 5-35 800-1800 59 3-5 245 290 PHD-150(J) 11-60 144-313 7-45 800-1350 65 3-5 365 454 PHE-150(J) 15-120 144-313 12-45 800-1350 65 3-5 365 635 PHE-200(J) 15-120 324-713 7-49 400-1000 65 5-10 560 982 PHR-200(J) 22-300 324-713 7-49 400-1000 65 5-10 560 1150 PHST-250(J) 45-560 540-1188 12-50 400-750 75 4-12 686 1202 PHST-300(J) 55-560 720-1620 7-45 300-650 80 2.5-7.5 762 3357 PHST-350(J) 55-560 1156-2520 13-45 300-500 79 3-8 965 4672 PHTU-400(J) 75-1200 1379-3060 11-63 250-550 79 4-10 1067 9680 Product Diagram
