Product Description
In order to meet the special installation and use environment, the series pump is designed as a vertical centrifugal slurry pump, which can work under the immersion liquid. Do not need any shaft seal and shaft seal water, can work normally under the condition of insufficient suction volume. This series pump is single pump shell structure, with light weight, small volume, easy installation and maintenance, etc.PVP pump body for wear-resistant metal. SPR pump immersed parts are lined with rubber, suitable for conveying corrosive slurry.
According to the height of slurry pool liquid level, can choose different lengths of pump drive shaft and suction pipe; And the use of a variety of speed of a variety of variations, so that the pump is always in the best operating conditions, long service life, high operating efficiency, can meet a variety of harsh delivery conditions.
Scope of application
Mainly suitable for conveying corrosive, coarse particles, high concentration slurry. Widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments.
Technical Parameters

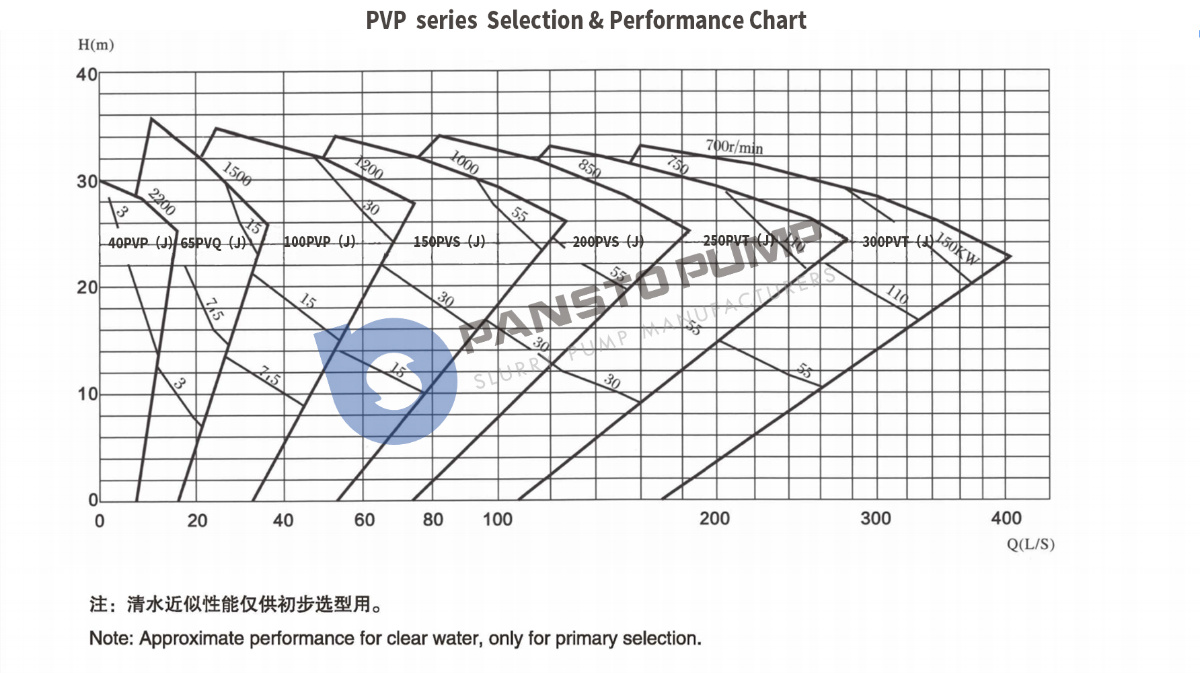

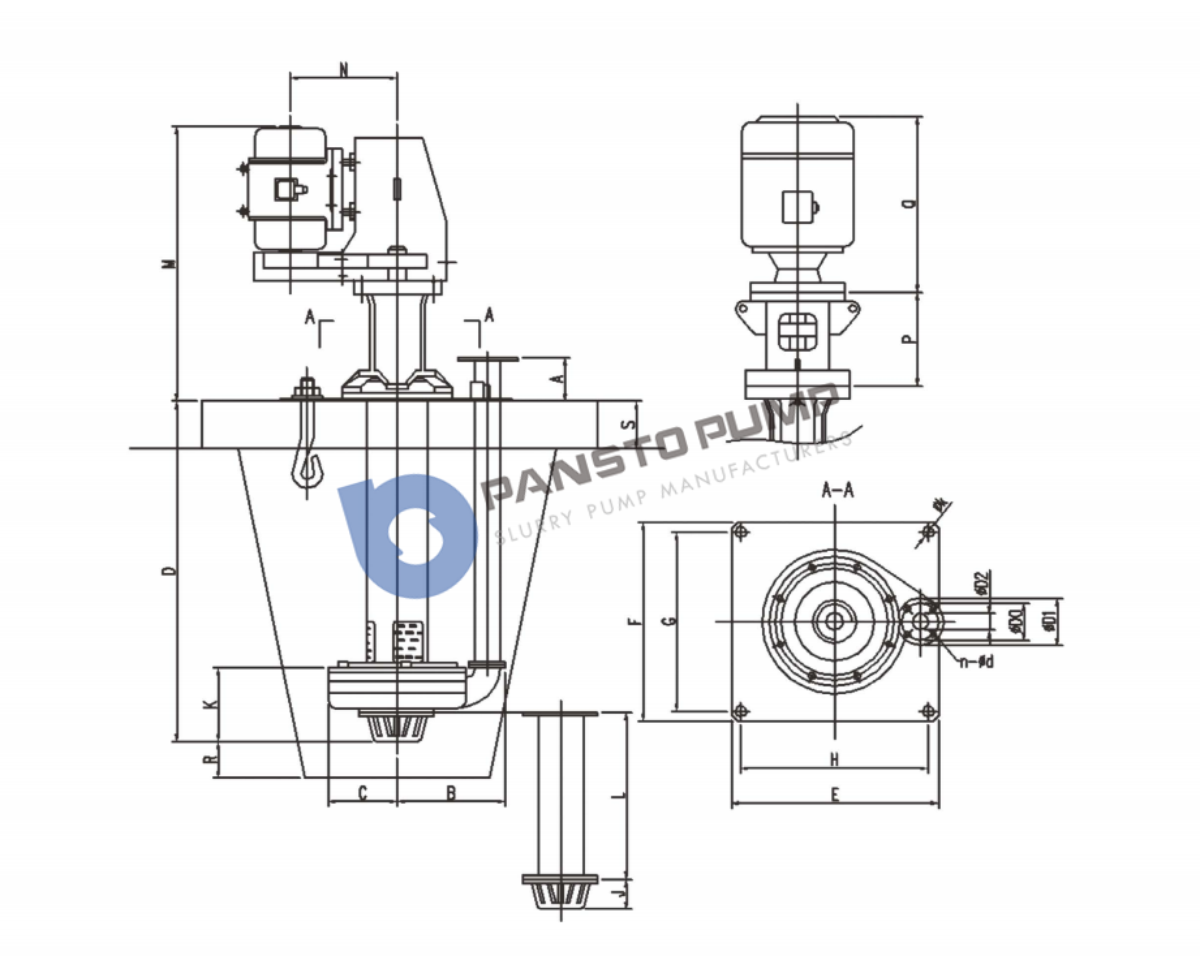

Model Distribution power P(KW) Flow Q(m³/h) Head H(m) Rotational speed n(r/min) Efficiency η% Impeller diameter（mm） Maximum particle size(mm) Weight(kg) 40PVP 1.1-15 7.2-29 4-28.5 1000-2200 40 188 12 300 65PVP 3-30 18-113 5-31.5 700-1500 60 280 15 500 100PVR 5.5-75 40-289 5-36 500-1200 62 370 32 920 150PVS 11-110 108-576 8.5-40 500-1000 52 450 45 1737 200PVS 15-110 180-890 6.5-37 400-850 64 520 65 2800 250PVT 18.5-200 261-1089 7-33.5 400-750 60 575 65 3700 300PVT 22--200 288-1267 6-33 350-700 50 610 65 3940 Product Diagram
