PZX series slurry pump
PZX series slurry pump
In order to meet the needs of the rapid development of mineral processing, electric power, metallurgy, coal and other industries, improve the models of slurry pumps under high head conditions, and then summarize the experience at home and abroad and the comprehensive information fed back by users, our company has developed a new generation of PZX series slurry pumps with high efficiency, large flow, high field range and multi-stage series connection by using modern advanced technology and scientific research achievements.
Category:
Keywords:
PZX series slurry pump
E-mail：
- 产品描述
-
Product Description
In order to meet the needs of the rapid development of mineral processing, electric power, metallurgy, coal and other industries, improve the models of slurry pumps under high head conditions, and then summarize the experience at home and abroad and the comprehensive information fed back by users, our company has developed a new generation of PZX series slurry pumps with high efficiency, large flow, high field range and multi-stage series connection by using modern advanced technology and scientific research achievements. The main features of this series of products are as follows:

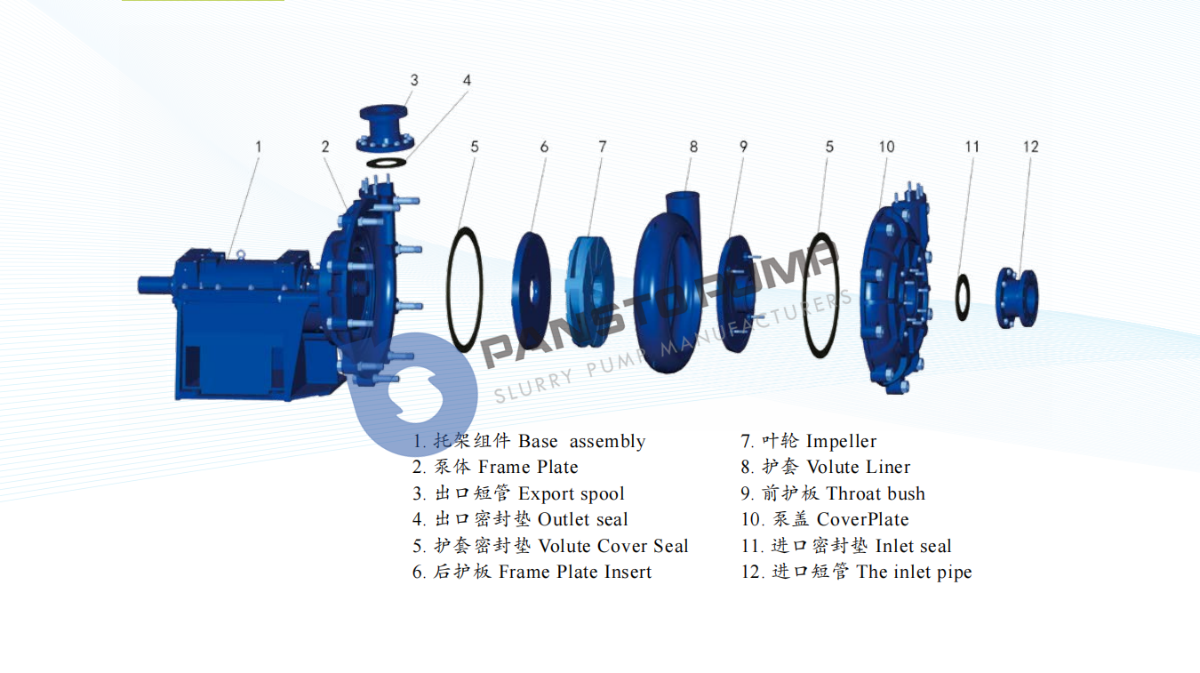

This series of pumps are horizontal, singlestage, single suction, cantilever and double pump casing centrifugal slurry pumps.modernCAM design method is adopted, with excellent hydraulic performance, high efficiency and low wear rate. Auxiliary impeller and packing combined sealand mechanical seal are adopted to ensure no leakage of slurry.wide flow channel, good anti blocking performance and excellent cavitation performance.
Reliability design ensures that the mean time between failures (MTBF) of the whole machine is greatly improved.
Thin oil lubrication and metric bearings shall be adopted, and the lubrication and cooling system shall be reasonably set to ensure that the bearings operate at low temperature.
The flow passage parts are made of special materials with good wear and corrosion resistance.
It can be used in series in multiple stages within the allowable pressure range, and its allowable maximum working pressure is 3.6mpa.
The transmission mode of PZX series slurry pump is mainly direct connection, and the flow head of the pump is adjusted by cutting the outer diameter of the impeller.
The pump has the advantages of few specifications and models and convenient selection.
The utility model has the advantages of reasonable structure, high efficiency, reliable operation and convenient maintenance.

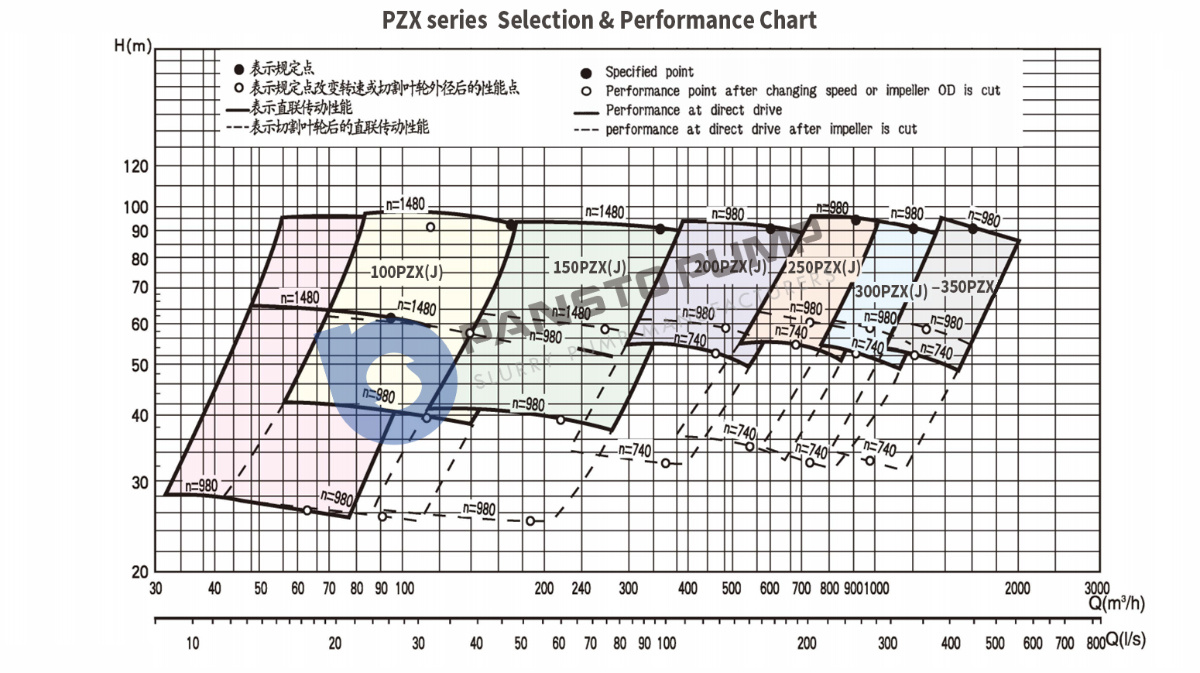

Technical Parameters
Model Distribution power P(KW) Flow Q(m³/h) Head H(m) Rotational speed n(r/min) Efficiency η% Cavitation allowance NPSH(m) Impeller diameter D(mm) Weightkg) 85PZX 30-55 56-120 61-58 1480 47-62 4.5-3 390 1850 11-15 37-76 25-26 980 47-62 2.0-1.3 1850 100PZX 90-132 100-210 91-87 1480 48-66 5.2-2.7 485 2500 22-37 68-135 40-38 980 48-66 1.2-2.3 2500 75-90 93-187 77-73 1480 48-66 4.4-2.3 445 2500 18.5-30 61-126 34-32 980 48-66 1.9-1.0 2500 55-75 82-168 63-59 1480 48-66 3.5-1.8 400 2500 15-18.5 55-115 27-26 980 48-66 1.5-0.8 2500 150PZX 132-200 209-420 93-85 1480 57-78 6-2.6 500 3000 37-75 139-278 40-37 980 57-78 2.7-2.1 3000 90-160 187-378 78-68 1480 57-78 4.9-2.1 450 3000 30-45 125-252 33-30 980 57-78 2.1-1.1 3000 75-110 168-336 59-55 1480 57-78 3.8-1.7 400 3000 18.5-30 110-230 26-24 980 57-78 1.7-0.8 3000 200PZX 185-315 360-720 92-86 980 53-78 3.8-2.7 740 3450 90-160 272-544 52-49 740 53-78 2.2-1.5 3450 160-250 328-656 80-74 980 53-78 3.3-2.3 685 3450 75-110 252-505 46-42 740 53-78 1.9-1.3 3450 110-200 305-610 67-64 980 53-78 2.8-1.1 630 3450 55-90 233-466 38-36 740 53-78 1.6-0.6 3450 250PZX 355-450 600-1000 96-92 980 76-63 6.7-2.7 740 4000 160-250 475-870 55-53 740 76-63 3.8-1.5 4000 280-400 560-950 81-77 980 76-63 60.-2.4 700 4000 132-200 450-839 48-46 740 76-63 3.4-1.4 4000 220-250 519-940 68-64 980 76-63 5.0-2.0 640 4000 110-160 389-800 41-39 740 76-63 2.9-1.1 4000 300PZX 500-560 704-1408 95-85 980 78-63 7.3-3.3 740 4500 185-250 524-1050 54-49 740 78-63 4.2-1.9 4500 355-450 648-1296 82-74 980 78-63 7.1-3.0 700 4500 160-200 493-985 47-44 740 78-63 4.0-1.7 4500 250-355 597-1193 69-64 980 78-63 5.5-2.5 645 4500 110-160 453-907 40-36 740 78-63 3.1-1.4 4500 350PZX 450-710 960-1919 95-86 980 81-68 6.9-3.5 760 5500 200-355 724-1450 54-49 740 81-68 3.9-2.0 5500 355-560 888-1775 82-73 980 81-68 5.9-3.0 703 5500 160-280 640-1341 42-46 740 81-68 3.4-1.7 5500 280-500 816-1632 69-62 980 81-68 5.0-2.5 646 5500 132-220 616-1232 39-35 740 81-68 2.9-1.4 5500 Product Diagram
