PL series slurry pump
PL series slurry pump
Category:
Keywords:
PL series slurry pump
E-mail：
- 产品描述
-
Technical Parameters
TYPE ALLOWABLE MAX.PO0WER(KW) CLEAN WATER PERFORMANCE IMPELLER CAPACITY
QHEAD
H
(m)SPEED
n
(r/min)MAX EFF.
η(%)NPSHr
(m)IMPELLER NO. IMPELLER DIA.

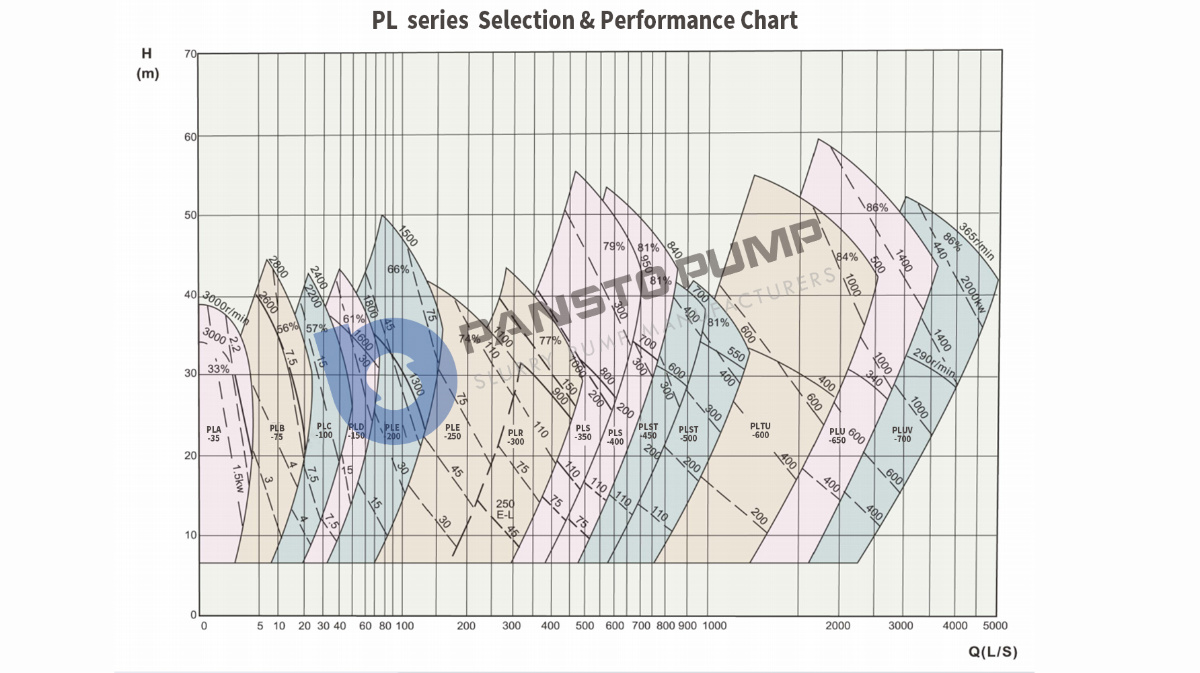

(mm)(m3/h) (L/S) PLA-20 7.5 2.34-10.8 0.65-3 6-37 1400-3000 30 4 152.4 PLB-50 15 16.2-76 4.5-20 9-44 1400-2800 55 4 190 PLC-75 30 18-151 5-42 4-45 900-2400 57 4 229 PLD-100 60 50-252 14-70 7-46 800-1800 60 2-3.5 4 305 PLE-150 120 115-486 32-135 12-51.5 800-1500 65 2-6 4 381 PLE-200 120 234-910 65-253 9.5-40 600-1100 64 3-6 4 457 PLE-250 120 396-1425 110-396 8-30 500-800 77 2-10 5 550 PLS-300 560 468-2538 130-705 8-60 400-950 79 2-10 5 653 PLS-350 560 650-2800 180-780 10-59 400-840 81 3-10 5 736 PLST-400 560 720-3312 200-920 7-51 300-700 80 2-10 5 825 PLST-450 560 1008-4356 280-1210 9-48 300-600 80 2-9 5 933 PLTU-550 1200 1980-7920 560-2200 10-50 250-470 86 4-10 5 1213 PLTU-650 1200 2520-9108 700-2530 10-55 200-450 86 2-8 5 1425 Product Diagram
