PH series slurry pump
PH series slurry pump
This series of slurry pump is a cantilever centrifugal double shell slurry pump， double pump shell pump body pump cover with a replaceable wear metal liner or natural rubber lining,1. It is suitable for transporting abrasive or corrosive slag slurry. It is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering.
Category:
Keywords:
PH series slurry pump
E-mail：
- 产品描述
-
Product Description
This series of slurry pump is a cantilever centrifugal double shell slurry pump， double pump shell pump body pump cover with a replaceable wear metal liner or natural rubber lining,1. It is suitable for transporting abrasive or corrosive slag slurry. It is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering.
PH(J) and PHH pumps can also be called heavy slurry pumps. Because this type of pump has thick wear parts and heavy bracket, it is suitable for conveying strong abrasion, high concentration slag slurry or low concentration high lift slag slurry. It can be used in series at multiple levels within the maximum allowable working pressure range of the pump. HH pump is suitable for conveying low concentration high head slag slurry or high concentration low abrasive high head pump.
Technical Parameters

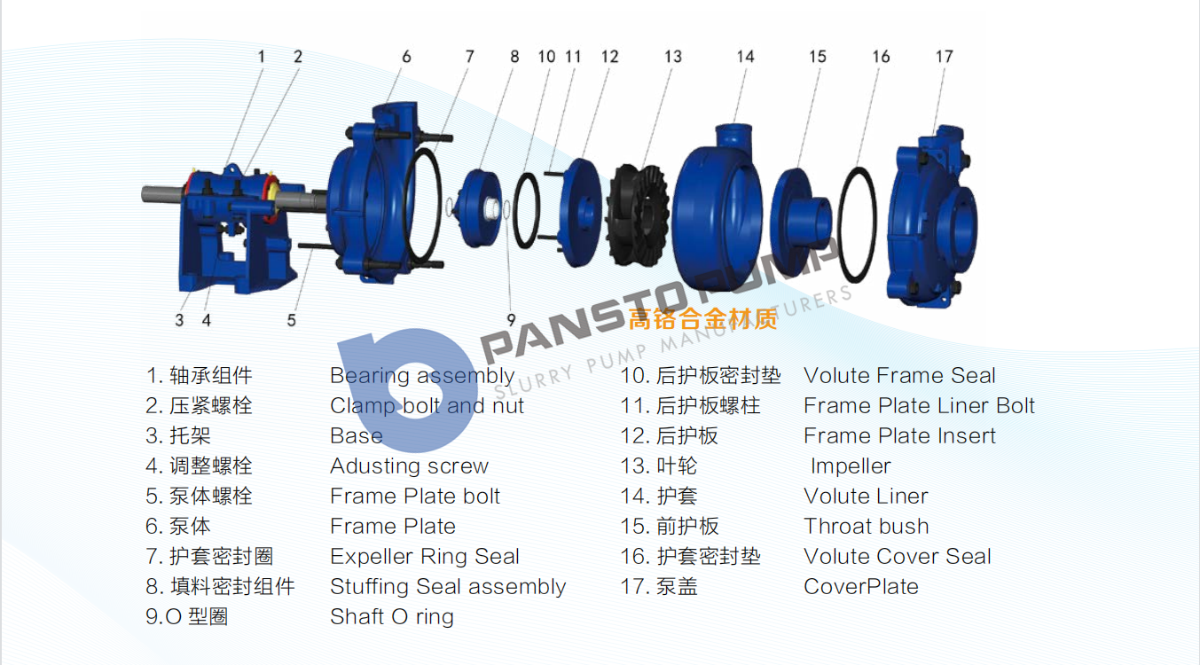

Model Distribution power P(KW) Clear water performance Flow Q(m³/h) Head H(m) Rotational speed n(r/min) Efficiency η% Cavitation allowance NPSH(m) Weight (Kg) PHB-40 2.2-15 3.6-20 5-68 1200-3800 40 2-4 91 PHB-50 2.2-15 7-48 7-62 1200-3200 45 3.5-8 118 PHC-75 4-30 21-86 12-65 1300-2700 55 4-6 191 PHC-100 5.5-30 50-150 9-45 1000-2000 71 4-6 263 PHD-100 7.5-60 68-160 10-52 1000-2200 71 4-6 363 PHD-150 15-60 72-360 12-56 800-1550 65 5-8 626 PHE-150 22-120 93-385 12-63 800-1600 65 5-8 728 PHE-200 18.5-120 360-820 10-61 500-1100 72 2-9 1473 PHR-200 110-300 360-820 10-61 500-1140 72 2-9 1836 PHST-250 45-560 630-1300 11-60 400-850 71 4-10 3750 PHST-300 55-560 800-1900 7-58 350-730 82 6 4318 PHST-350 75-560 1200-2600 13-60 300-600 77 3-10 4609 PHTU-400 160-1200 1368-3000 11-60 250-550 79 4-10 10000 Product Diagram
