PTL series desulphurization circulating pump
PTL series desulphurization circulating pump
PTL series desulphurization circulating pump is horizontal, axial suction, single stage, single suction, suspension, after pumping, single shell structure. This series of pump in hydraulic design, structural design, taking advantages of similar products at home and abroad and innovation
Category:
Keywords:
PTL series desulphurization circulating pump
E-mail：
- 产品描述
-
Product Description

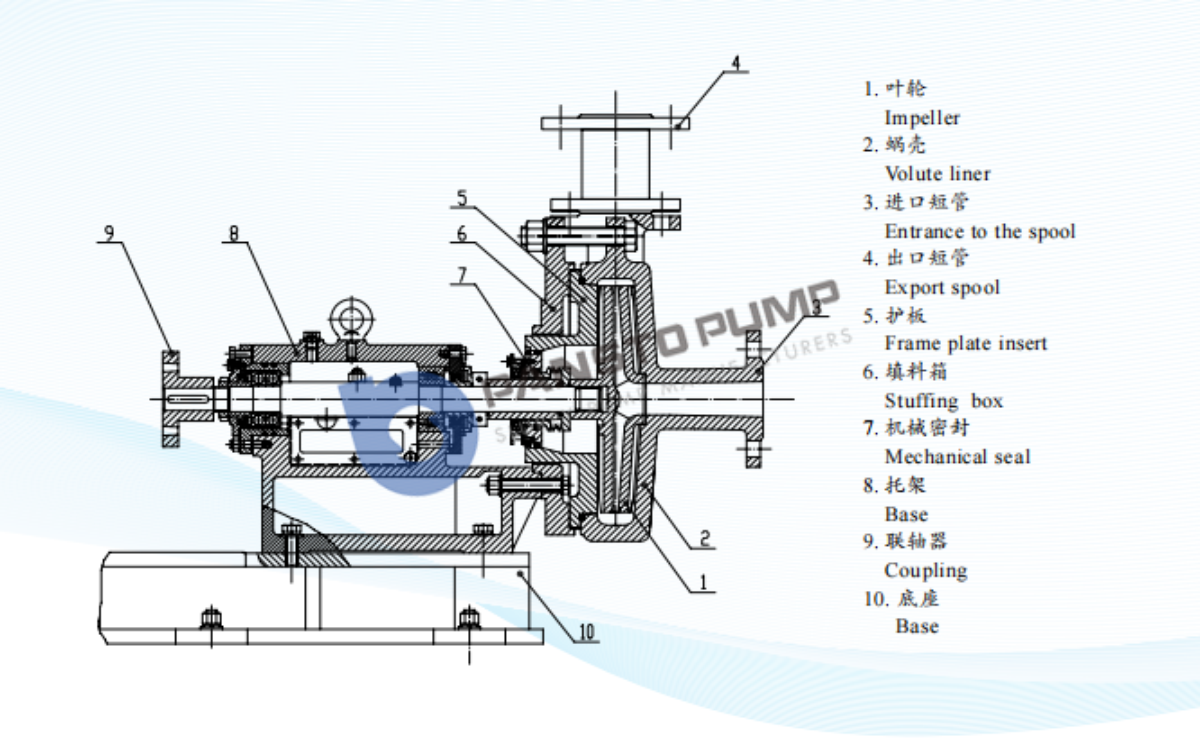

PTL series desulphurization circulating pump is horizontal, axial suction, single stage, single suction, suspension, after pumping, single shell structure. This series of pump in hydraulic design, structural design, taking advantages of similar products at home and abroad and innovation, and flow components developed by using the special material GLH - 5, GLH - 6, with high efficiency and energy saving, corrosion resistance to abrasion, small vibration, low noise, reliable running, shaft seal, no leakage, long service life, maintenance is convenient wait for a characteristic, The comprehensive performance of the pump is leading in China. Suitable for conveying limestone or gypsum slurry in desulfurization system of thermal power generation, steel sintering, aluminum smelting and oil refining industries. The maximum chloride ion content of the slurry allowed to be transported is 20000ppm, the pH value is between 4.5 and 12, the slurry temperature is ≤ 65℃ , and the maximum weight concentration of the slurry Cw is 60%.

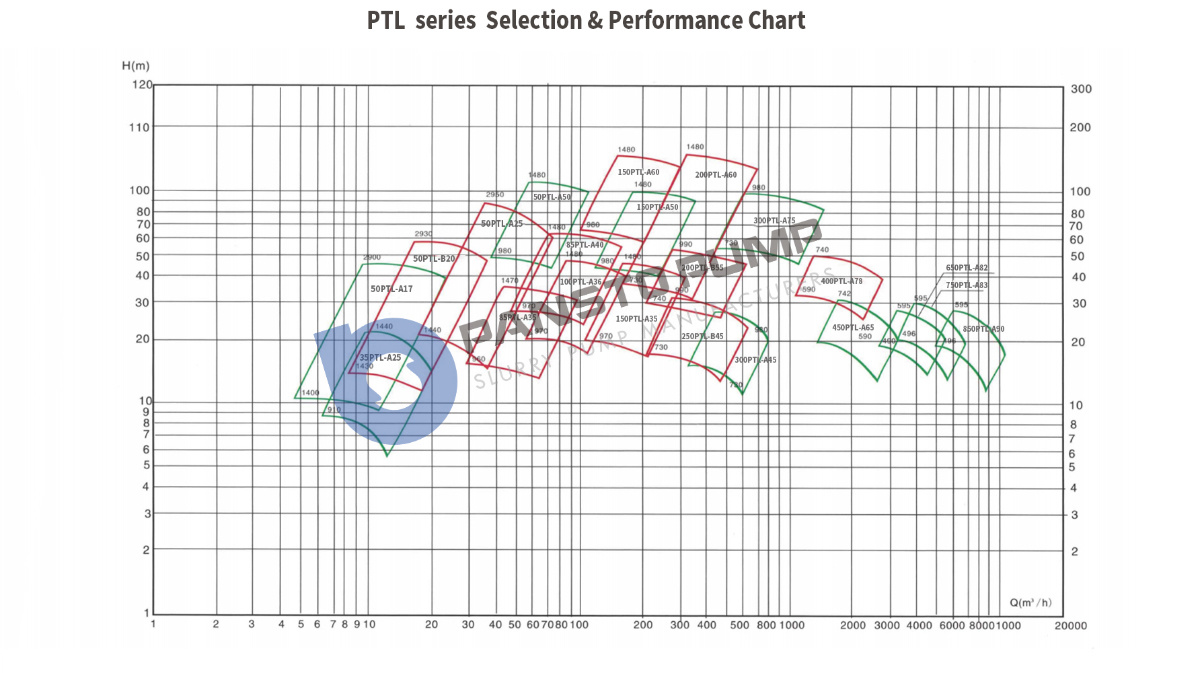

Technical Parameters
Model Flow Q(m³/h) Head H(m) Rotational speed n(r/min) Maximum particles allowed to pass through (mm) Maximum motor allowed (KW) Pump weight(Kg) 850PTL-90 3142-9700 6.0-28.7 300-592 181 900 5900 750PTL-84 2157-7360 5.2-24.5 300-591 168 630 5420 650PTL-82 664-5600 5.2-27.8 300-595 152 500 4900 550PTL-85 1036-4080 5.7-26.8 300-591 135 400 4500 400PTL-78 720-2865 11.6-51.1 400-740 104 500 3700 350PTL-60 580-2403 8.9-53 490-989 96 400 2790 250PTL-45B 138-645 35.7-31 490-990 51 90 1750 200PTL-55B 1139-630 11.3-53.7 490-990 56 132 1540 200PTL-50B 62-278 9.3-44.6 490-980 30 90 1470 200PTL-50 63-279 9.3-44.6 490-990 30 90 1470 200PTL-40 122-503 11.2-61.2 700-1490 40 132 830 150PTL-45B 41-219 12.1-76.4 700-1480 24 90 800 150PTL-40B 61-268 12-61 700-1480 29 75 620 150PTL-35 77-323 8.8-45.9 700-1480 42 75 550 100PTL-36 41-167 8.9-47 700-1480 62.4 37 480 85PTL-40 34-159 12.2-63.2 700-1480 62 55 490 85PTL-30 21-99 7.0-35.6 700-1480 54.6 22 260 75PTL-40D 16-76 9.5-52 700-1480 45 30 320 75PTL-30 16-78 6.1-36.3 700-1480 48.5 18.5 210 50PTL-25 16.8-75 13.7-88.6 1400-2950 42.5 45 185 50PTL-20B 7.9-37 10.7-57.5 1400-2930 53 15 160 50PTL-19 7.8-34.9 12.3-57 1400-2930 58.8 15 173 50PTL-17 4.6-23.4 9.2-44.6 1400-2900 52.4 7.5 127 40PTL-25 4.7-19.9 3.3-21.6 700-1440 38 4 107 40PTL-15 4.4-19.3 6.2-35 1390-2900 41.8 5.5 89 Product Diagram
